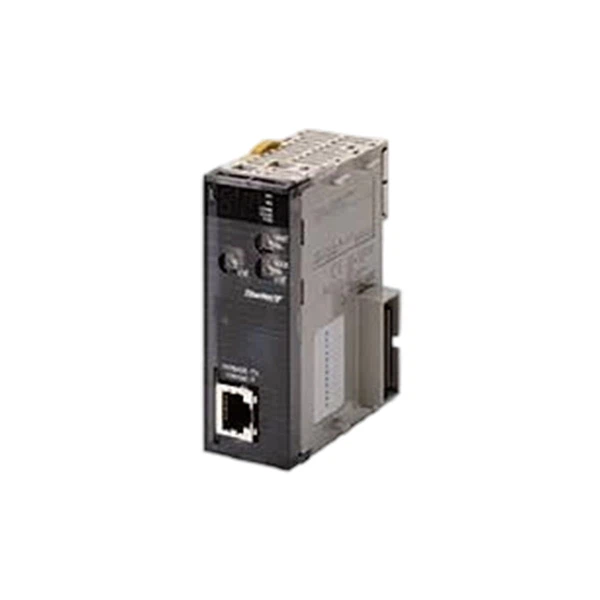

Omron CJ1W-EIP21
Stämpla:Omron
Modell:CJ1W-EIP21
Inventarisk situation:Varor finns i lager .
Produktbeskrivning
Omron CJ1W-EIP21,CJ1W-EIP21,Omron EIP21,CJ1W-EIP21 EtherNet/IP,Omron CJ1 EtherNet/IP Module,EtherNet/IP Scanner Module CJ1,CJ1W-EIP21 DIP switch settings,Omron EIP21 installation guide,Omron CJ1W-EIP21 discontinued,EtherNet/IP Scanner Modul för CJ1,
Specifikationer
|
Typ |
100 base-tx |
|---|---|
|
Mått |
31 × 90 × 65 mm (bredd × höjd × djup) |
|
Vikt |
94g |
|
Strömförsörjning |
DC 5V |
|
Maximal ström |
410 mA |
|
Protokollstöd |
Ethernet/IP, FINS SERVICE |
|
Certifiering |
CE, UL, CUL, CSA och andra internationella certifieringar |
|
Installationsmetod |
CPU -rack eller förlängningsställ, stöder din järnvägsmontering |
Produktfunktioner
The Omron CJ1W-EIP21 is a high-performance Ethernet/IP communication module designed to seamlessly integrate Omron's CJ1 series Programmable Logic Controllers (PLCs) into industrial Ethernet networks. This tiny module allows for real-time data interchange between the PLC and other automation system components such as HMIs, sensors, drives, and robots, making it perfect for modern industrial situations som kräver snabb, pålitlig kommunikation .
The CJ1W-EIP21 supports the Ethernet/IP protocol, a widely adopted industrial network standard that simplifies interaction with Rockwell Automation and other compatible systems. The module has two Ethernet ports with built-in switches, which allows it to construct a linear network architecture (daisy-chain configuration) without the use of external switches, lowering cabling complexity and Kostnader . Det erbjuder både uttryckliga meddelanden (för installation och diagnostik) och implicit meddelanden (för höghastighets I/O-dataöverföring), vilket säkerställer effektiv kommunikation för en mängd olika applikationskrav .}
The CJ1W-EIP21 has Class 1 and Class 3 server capabilities, allowing it to operate as a communication endpoint for several clients at once. This makes it appropriate for applications requiring data sharing across several devices, such as distributed control systems or machine monitoring networks. The module also offers CIP Sync for time synchronization, which is essential for applications that require exact coordination of events across the nätverk .
The CJ1W-EIP21 can be easily installed and configured using Omron's CX-Programmer software. The software provides a simple interface for configuring IP addresses, network parameters, and mapping I/O data, minimizing setup time and complexity. The module's tiny form (90mm wide x 120mm deep) allows it to fit neatly into the CJ1 PLC rack and draws Kraft direkt från den, undviker behovet av extern strömförsörjning .
The CJ1W-EIP21 is designed for industrial reliability, with features such as LED indicators for network status and fault detection, as well as diagnostic functions to swiftly discover and repair communication difficulties. Its sturdy design provides stable functioning even in extreme conditions such as high heat, vibration, or electrical noise.
The Omron CJ1W-EIP21, whether used in automobile manufacturing, packing lines, or material handling systems, improves system efficiency by allowing the CJ1 PLC to communicate seamlessly with other network devices. Its Ethernet/IP compatibility, dual-port design, and simple configuration make it an ideal solution for connecting automation systems into Industrial Internet of Things (IIoT) frameworks. Trust CJ1W-EIP21 för att tillhandahålla pålitlig, höghastighets Ethernet-kommunikation för dina industriella automatiseringskrav .
Vanliga frågor
